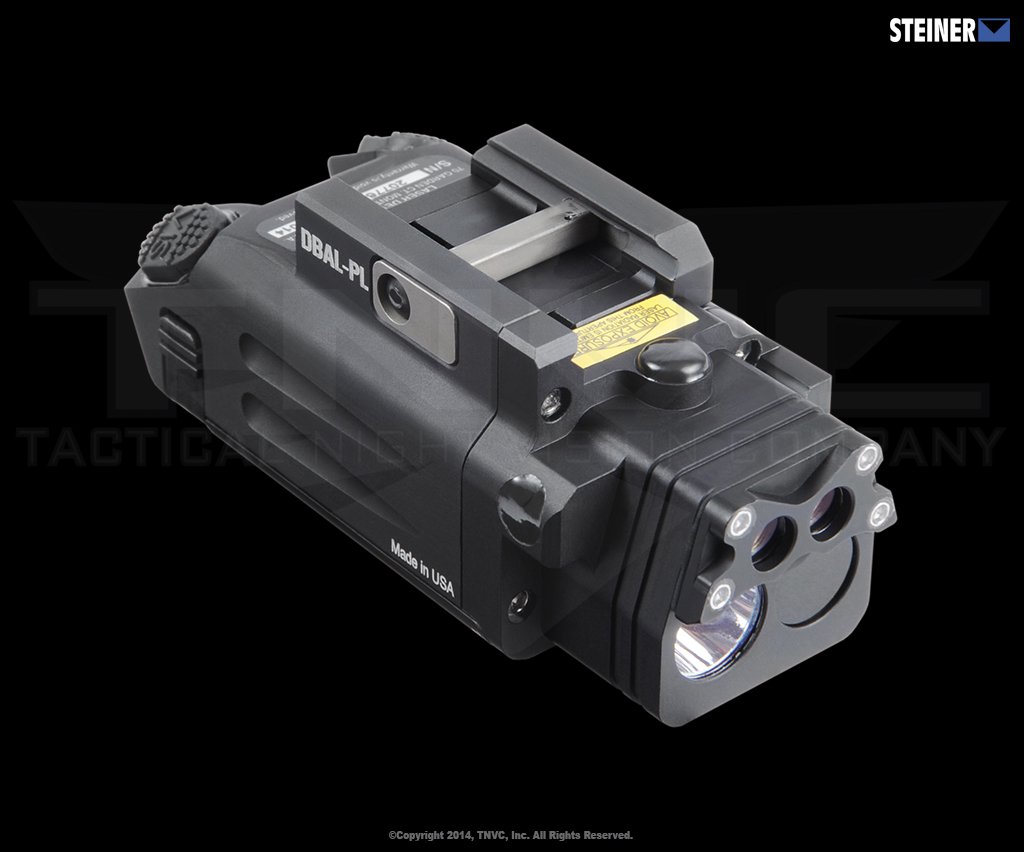

The Dual Beam Aiming Laser – Pistol (DBAL-PL) from Steiner is a multi-functional pistol aiming laser. Easily and securely attaching to any pistol with an M1913 Picatinny Rail, it features four (yes 4) outputs: Infrared Laser Pointer + Infrared LED Illuminator and Visible Laser Pointer (available in either red or green) + LED White Light. All IR functions are completely eye-safe / Class1. The DBAL-PL gives users the most functional pistol aiming accessory available.

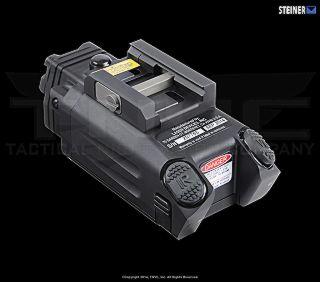

Housed in a hard anodized, machined aluminum body, the DBAL-PL is rugged and ready for the battlefield. Controls are easy and intuitive. Two buttons are presented on an angled rearward-facing surfacing. They are perfectly located for quick access and easily activated with or without gloves. One button is marked “VIS” and activates the visible laser and 400 lumen white light at the same time. The other button, marked “IR,” activates the infrared laser and infrared illuminator at the same time. Both lasers are co-aligned to facilitate zeroing procedures. Windage and Elevation adjustments require a small screw driver and are recessed to prevent accidental movement. By zeroing one laser, you are zeroing the other in tandem. The DBAL-PL runs off two CR123 batteries. The battery compartment features a very secure quick release latch. The latch is not spring-loaded and requires positive engagement by the operator on both sides to lock and unlock.

The DBAL-PL is one of the most innovative pistol products on the market. Inspired by the legacy LAM (Laser Aiming Module) used by USSOCOM in the late 1990’s, it gives the operator every functional device he/she would need to effectively deploy a pistol in low light and no light situations. In fact, the DBAL-PL was originally commissioned by a unit within the Special Operations community. The outputs are extremely functional. The infrared illuminator is very effective out to 50 yards and is still usable at almost 100 yards. While this may seem low powered compared to other illuminators on the market, this unit is designed for a pistol that will rarely be employed past 25 yards. That said, we must stress that this device is designed for a pistol and a pistol only. It is not meant for deployment on a rifle! The control layouts are specific to how it would mount under a pistol. Can it be attached to a rifle? Yes. Are some guys going to try it? Yes. But the controls will be extremely awkward to actuate in this configuration. They will not be fast and will not be easy. So, if you are looking for multifunction rifle laser system, look elsewhere. But, if you are looking for one of the most fully-featured combat pistol accessories on the market, look no further.

This Item is ITAR controlled and cannot be shipped or carried outside the United States without express written permission from the United States Department of State. We do not export outside the United States. PERIOD!

3.46”(L) x 1.63”(W) x 1.32”(H)
5.4 oz. (w/ Battery)
Aircraft Aluminum 6061T-6
Hard Anodized
Two (2) CR123A Batteries
Battery Life:
1.75 Hours
5 meters
3 Years
Infrared Laser Spec:
IR Laser Class:
Class 1
IR Laser Output:
0.7 mW (Eye Safe)
IR Laser Divergence:
< 0.8 mRad
IR Laser Wavelength:
850 nm
IR Laser Range:
Approx. 250 Yards
Visible Laser Spec:
Visible Laser Class:
IIIR Red or Green
Visible Laser Output:
4.6 mW
Visible Laser Divergence:
< 0.8 mRad
Visible Laser Wavelength:
635 nm (Red), 515-525 nm (Green)
Visible Laser Range:
250m / 5m (Night / Day – Red), 750m / 15m (Night / Day – Green)
IR Illuminator Specs:
—————————————————, Class 1 (Eye Safe)
IR Illuminator Output:
< 600 mW
IR Illuminator Divergence:
IR Illuminator Wavelength:
850 nm
IR Illuminator Range:
100 m
White Light Spec:
400 Lumens
DBAL-PL Module, Operator’s Manual, Batteries
Steiner P/N:
9020 (red), 9021 (green)
