FLIR AN/PVS-27 MUNS MilSight S135 Magnum Universal Night Sight

FLIR AN/PVS-27 MUNS MilSight S135 Magnum Universal Night Sight

Milford, NJ

Email to place order & for pricing

**YES! This item is AVAILABLE to CIVILIANS!**

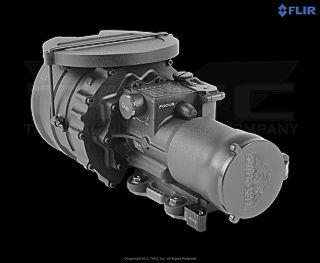

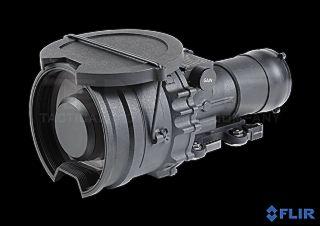

The AN/PVS-27 MUNS (Magnum Universal Night Sight) is a high-resolution Clip-On Night Vision Device that mounts to any MIL-STD-1913 rail interface forward of a riflescope. This gives the operator night vision capability from a standard day scope system. The PVS-27 utilizes a fully Mil-Spec Gen 3 PINNACLE Auo-Gated image intensifier tube, a fast f/1.0 catadioptric lens for a brighter and sharper image in starlight, and patented permanent boresight alignment technology. The unit is installed, operated, and removed without tools and without affecting boresight (permanent boresight alignment). The PVS-27 can be mounted in front of a spotting scope for long range reconnaissance, hand held as a night observation device, or placed in front of a riflescope for sniper applications. The UNS is optimized for medium and long-range sniper weapons, rifles, and machine guns including the Mk11, Mk12, M-16A4, SCAR-H, M240, and M-24. It is rated for calibers up to and including .50 BMG.

The AN/PVS-27 utilizes the latest ITT Gen 3 PINNACLE technology giving the operator an extremely robust system suited to any environment. The cast housing will stand up to the elements rain or shine and protects the unit from abuse found in the field. FLIR’s patented Shock Mitigation System is specially designed to protect PINNACLE tubes from damage under heavy recoil. PINNACLE tubes are usually not intended for high caliber weapons, but they are perfectly secure with the AN/PVS-27.

PINNACLE represents the latest and greatest night vision technology. Developed by ITT Technologies, it is the answer to the U.S. Military’s request for Gen4. This request was to eliminate the ion barrier film in the tube that limits the amount of light able to be gathered in the first place. The film is important, though because it also protects the sensitive Photocathode in the tube from the damage caused by positive ions striking it as the light photons are converted into electrons and multiplied. In essence, the film greatly extends the service life of the tube. The military’s request for Gen4 was to eliminate this film to allow the maximum amount of light in to the tube, giving it more light to amplify and resulting in a better, crisper image for the warfighter. The development cycle proved that by eliminating the film, the tubes were becoming damaged very quickly and could not sustain a desirable life. So, ITT’s scientists developed a thinner film than the original barrier used in Gen3 tubes. This new film is 10,000 times thinner than a human hair and allows noticeably more light transfer than the standard, thicker, Gen3 tubes. This new super-thin film technology, combined with an enhanced autogated power supply, improved hole size of the Microchannel Plate, a more sensitive Photocathode, and other advancements, represents ITT’s PINNACLE Technology and is the military specification for the newest Omni VII contract. Because it still uses a film, PINNACLE is Gen3.

PINNACLE gives the user unparalleled imaging and pushes Gen3 technology to the max. The user can operate in environments that, previously, would have been non-permissive to night vision because the system reduces the blooming and halo effects of bright light. The operator no longer needs to worry about getting bright lights blinding him or her or damaging the unit. Of course, this does not mean that the user can walk around in sunlight with his or her PVS-27 turned on, but they will not fry the tube if they are exposed to bright lights through the scope. PINNACLE really shines in lower-light situations where there is less contrast created by ambient light. Details not visible to standard Gen3 tubes can be better seen by PINNACLE units because they can gather more light to better resolve images. This makes PINNACLE units ideal for military and law enforcement units.

We have been shooting the AN/PVS-27 for years and are thoroughly impressed with its performance. The MUNS was developed by OSTI (now FLIR) and issued to US Forces around the world in the Global War on Terror. Its objective lens is one of the largest seen on an image intensifier, meaning it gathers a tremendous amount of light. We have found that the sharpest images are obtained while pairing the MUNS with a 15x scope. The ability to clip the unit in front of the already-zeroed day optic is extremely advantageous since it means a unit or department does not need to keep certain rifles dedicated to night operations. The adjustable gain gives your military or LE unit a step above commercial tube systems, especially in urban environments where the halo effect is reduced and resolution is enhanced versus commercial I2 systems.

Export of Night Vision Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured night vision devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing night vision equipment from TNVC, you attest that you will not attempt to export or carry this night vision equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Gen3 Night Vision Devices, even on US soil. Again, this is a crime punishable by fines and prison sentences.

8.7″(L) x 3.75″(H Above Rail)
3 lbs. 2 oz.
Matte Black, Corrosion Resistant
Two (2) Standard AA Batteries
Rail Mount:
Dual Throw Levers
Shock Mitigation System Up to/Including .50BMG
2 Year Warranty
Optimum Mag:
Focus Range:
15 Meters – Infinity
1,000 – 75,000
4.2 CY/MR (5.0 CY/MR Typical)
92mm Lens Focal Length
Objective F/:
Output Optic:
40mm Exit Pupil Diameter
970 Meters (100 Meters, Face)
1,350 Meters (140 Meters, Face)
1,380 Meters (140 Meters, Face)
1,730 Meters (180 Meters, Face)
Factory Aligned 1/2 MOA or Better
Permanent to Within 1 MOA or Better
Within 1/2 MOA
Operator’s Manual, Flip-Up Lens Cap, Soft Carry Case, Light Bridge Cover, Lens Cleaning Kit, Two (2) AA Batteries, Rear Lens Cap
