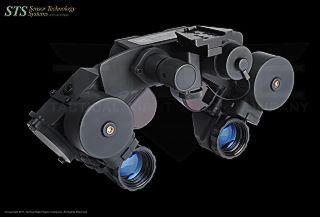

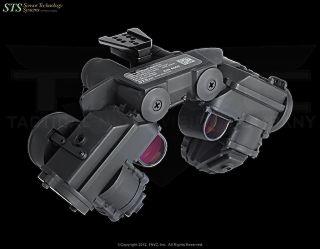

AN/PVS-21 LPNVG STS Low Profile Night Vision Goggle

Email to place order & for pricing

The AN/PVS-21 LPNVG is unlike any other night vision system. Designed for aggressive special operations, it features incredible characteristics found only in this incredible unit. The AN/PVS-21 is a Low Profile Night Vision Goggle that utilizes sensor fusion technology to move the image intensifier tubes out of line with the optics creating two very unique benefits. First, it allows the width of the unit to be significantly shorter than most other NVG’s. In most cases, this translates to 3-4” less protrusion from the operator’s face. Low profile is very important in close confines. It better allows the operator to fit into smaller spaces and keeps the unit from snagging on obstacles and gear.

The second benefit ties into the unit’s patented see-through optics. The AN/PVS-21 uses a patented “folded optics” system that projects the night vision image into a pair of see-through optics. This means that the operator can literally see through the lenses regardless of whether or not the unit is engaged. See through optics add a whole new level of versatility. No longer does the tube control the brightness of the image. If an operator is exposed to too much ambient light, the image simply fades out and the actual scene is viewed straight through the lenses. The image appears as it normally would through a set of clear goggles because the operator is not viewing through an image intensifier. This ability greatly increases the operator’s situational awareness and makes him more combat effective because threats can be more easily engaged regardless of the lighting conditions. While PINNACLE tubes do a good job of protecting the user’s vision from changing lighting conditions, the AN/PVS-21 solves the problem in a more innovative way, providing smooth transition from dark to light. The see-through lenses also provide the most depth-perception available of any head-mounted night vision goggle.

The AN/PVS-21’s see-through system allows unimpeded access to weapon optics. Wearing helmet-mounted NVG’s has always meant that a weapon-mounted infrared laser was necessary for targeting. While this is still recommended, the AN/PVS-21’s lenses actually allow the operator to acquire his weapon optic and engage the threat as if he was not wearing NVG’s at all. This incredible feat can only be accurately achieved with the AN/PVS-21. Because the unit is so low profile and utilizes see-through optics, the operator has a greater field of view than any other NVG would allow. A forward-looking round 40 degree night vision image is visible while a relatively open/un-aided view is seen around it and to the immediate peripherals. This makes rapid terrain traversing much easier.

Two auxiliary IR illuminators allow for no-light operation. The system has a high/low setting for their operation.

Another very interesting feature of the AN/PVS-21 is the Sensor Fusion Overlay HUD system. The LPNVG has two inputs for the optional Heads Up Display module that allows the operator to connect the 21 to any electronic device with a BNC-Out Connector, enabling real-time overlay of mission critical information onto the night vision image. This system interfaces with everything from thermal weapon sights (allowing the operator to place the weapon around a corner and engage targets without exposing himself), FLIR, PC’s (allowing real time data streaming from a laptop in the operator’s pack), and vehicle systems. The image is projected over one of the see-through lenses and can be adjusted for transparency so the operator can still see the regular night vision image through the overlay, maintaining situational awareness.

The AN/PVS-21 is unlike any other night vision device and represents a huge leap forward in image intensifier technology. The unit is currently in use by Tier1 Special Operations Forces across the globe.

Export of Night Vision Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured night vision devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing night vision equipment from TNVC, you attest that you will not attempt to export or carry this night vision equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Gen3 Night Vision Devices, even on US soil. Again, this is a crime punishable by fines and prison sentences.

Manufacturer:

STS

Dimensions:

2.75”(L) x 7.875”(W) x 3.5”(H)

Weight:

26.8 oz

Finish:

Black, Corrosion Resistant

Power:

One (1) AA Battery

Battery Life:

18-24 hours (Typical, No IR)

Tilt Adjust:

14° on Goggle

Submersible:

3 or 10 Meter Versions Available

Altitude:

Sea Level to 30,000’ (50,000’ Storage)

Warranty:

1 Year Warranty

OPTICAL SPECS:

———————————

Generation:

Gen3 U.S. ITT, or L3

Resolution:

64-72 lp/mm, Typical

Film:

Thin Film

Gate:

Auto or Non-Gated Versions

Gain:

Non-Adjustable

Magnification:

1x

FOV:

40 ° ± 2 °

Un-Aided FOV:

165° Horizontal, 90° Vertical

Eye Relief:

15mm

Exit Pupil:

10mm on Axis

Focus:

13” to Infinity

Operating Temp:

-22 °F to 125.6 ° F

INCLUDED:

AN/PVS-21 LPNVG, Pelican Shipping Case, MOLLE Storage Pouch, Operator’s Manual, Lens Pen, Batteries, Amber Films.
