5/8 Inch Wilcox Flip Mount w/ Riser System for EOTech EOTech XPS Riser Flip Mount Sys

5/8 Inch Wilcox Flip Mount w/ Riser System for EOTech EOTech XPS Riser Flip Mount System

Milford, NJ

**NOTE** This system is available as right-handed models only.

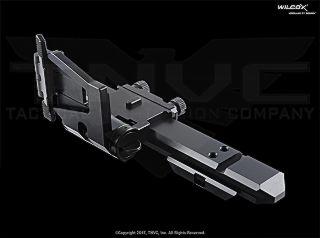

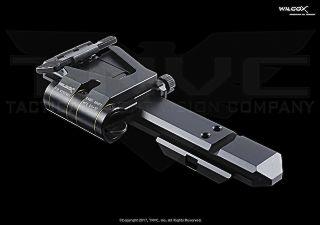

The Wilcox Flip Mount for EOTech 3x Magnifiers was designed to offer operators instant switch capability between magnified and non-magnified optics when using red dot sights. Engineered with a stiff force-to-overcome mechanism, the Flip Mount stays put in both “active” and “stowed” positions until the operator chooses to engage it. The mechanism is extremely precise in its tolerance stack with no wobble when placed in position. A single gross motion is all that is required to activate the Wilcox Flip Mount, securely placing it behind or flipped to the side. No other flip mount offers this type of stability and simplicity of operation. The Wilcox Flip Mount comes complete with an interface shoe for the EOTech G23 and G33 3x Magnifier or Aimpoint 3x Magnifier (depending on which option is chosen).

The magnifier interface shoe snaps the assembly directly into the Flip Mount Base. A spring-loaded bar allows the operator to remove the magnifier/shoe assembly from the weapon when it is not needed, for stowage elsewhere. This is one of the more ingenious design features since it allows the Wilcox Flip Mount to give the operator the option to completely remove the magnifier or simply flip it to the side depending on the situation. You now have the best of both worlds.

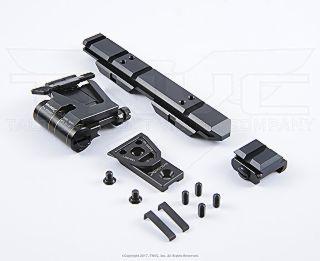

The Wilcox Flip Mount with Riser System was designed and configured for a specific customer unit that requested the ability to raise the optic off the weapon’s receiver for better compatibility with protective masks and other mission-essential equipment. This unit issues EOTech XPS optics, so the riser module was designed to specifically accommodate that footprint. The risers are built in two different heights: 0.625″ and 0.410″. Depending on the version chosen, there are two different attachment methods: Thumbscrew or Set Screw. The Set Screw version requires tools to install/remove, but is super low-profile. The full riser system kit also comes with a small 1913 rail riser for use under the rail-mounted front BUIS.

Export of Wilcox Industries products is controlled by the U.S. Department of Commerce under Export Administration Regulations (EAR) and the U.S. Department of State, Directorate of Defense Trade Controls Bureau of Political-Military Affairs, in accordance with 22 U.S.C. 2778-2780 of the Arms Export Control Act (AECA) and the International Traffic in Arms Regulations (ITAR). (22 CFR Parts 120-130) regulate Wilcox products.

It is unlawful to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or within the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction.

Wilcox Industries
Lightweight Aerospace Aluminum
MILSPEC Hardcoat Anodized
EOTech XPS HWS, G23, G33 3x Magnifier
Riser Height:
5/8″ (0.625″)
Riser Attachment:
Thumbscrew or Set Screw
