Desert Tan - Steiner DBAL-I² Class 1 IR Laser Civilian Legal IR Laser - Dual Beam Ai

The DBAL-I² (Dual Beam Aiming Laser – Intelligent) Class 1 IR Laser is the first Mil Spec infrared aiming laser available to the commercial market. Class 1 IR lasers feature a 0.7mW rating which is eye safe and not restricted by the FDA. While this is a lower output than the standard 5mW+ IR lasers used by Warfighters and LE Professionals, it is perfectly adequate for targeting at ranges out to 450 yards. This encompasses most ranges at which users will engage targets during night shooting and training.

Functionally, the DBAL-I² Class1 Laser features two output modes: Visible and IR. The IR Laser is 0.7mW while the visible is a full power Class IIIa laser. The DBAL-I² Class1 is available with either a visible red or visible green laser. The IR pointer is low powered to make it eye-safe, but will perform well out to 450 yards. The pointer is easy to spot and has a good divergence/shape. The IR pointer works well with a separate LED IR Illuminator at distances, but will become a bit harder to see at close range due to the splash back from the illuminator on walls. This is especially true with light-colored walls. However, it is still easily visible for targeting. The IR pointer is more easily seen in darker conditions. Just like visible pointers, the Class1 laser will tend to wash out the closer it gets to another light source.

The Visible Pointer is available in two versions: Red or Green. These are both standard full-power Class IIIa lasers.

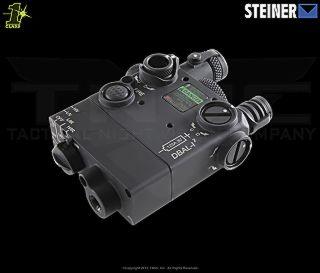

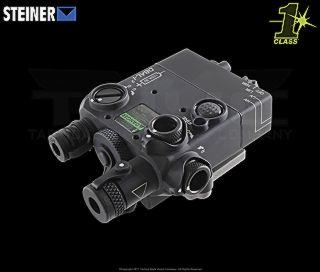

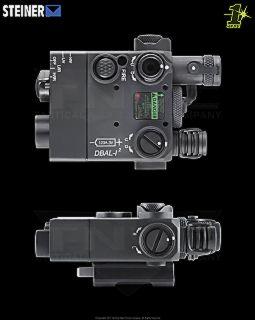

Based on LDI’s proven DBAL-I², the Class1 version has very few outward differences. The Class1 DBAL-I² utilizes the same exact body housing and optics package as its full-power brother. Physically, the housing is completely Mil Spec anodized precision machined Aircraft-Grade Aluminum with Steiner’s excellent HT Throw Lever Mount. These housings are extremely rugged, currently fighting on the front lines of the Global War on Terror. The Mount is a self-adjusting throw lever that is exceptionally strong and requires no tools to adjust for out of spec rails. The only outward difference between the Class1 and standard models are the power setting markings. The DBAL-I² Class1 has markings for High/Low Visible and IR Pointer that allow for 0.7mW high and .2mW low.

This Item is ITAR controlled and cannot be shipped or carried outside the United States without express written permission from the United States Department of State. We do not export outside the United States. PERIOD!

Manufacturer:

Steiner

Dimensions:

3.5”(L) x 2.75”(W) x 1.75”(H)

Weight:

7.2 oz. (w/ Battery)

Housing:

Aircraft Aluminum 6061T-6

Finish:

Hard Anodized

Power:

One (1) 3V DL123 Battery

Battery Life:

5 Hours Continuous

Waterproof:

20 Meters

Warranty:

1 Year Warranty

IR Class:

Class I (eye safe)

IR Output:

0.7mW(H) – 0.2mW(L)

IR Beam:

0.3 mrad

IR Laser WL:

835 nm

IR Range:

150/400-450 Yards (Low/High)

VIS LASER Spec:

———————————

Class:

IIIa

Output:

4.4mW (± 0.5mW)

Divergence:

0.5 x 1.5 mrad (±0.3)

Wavelength:

532 nm (± 5nm)

Range:

30/450 Meters (Red), 50/1,500 Meters (Green) Day/Night

INCLUDES:

Quick Release Throw Lever Mount, 7″ Remote Cable Pressure Pad Switch, Shipping Case, Allen Wrench, Operator’s Manual, One (1) 3V DL123 Battery

Steiner P/N:

9005 (tan/red), 9006 (tan/green)
